FIBC Solutions for Mining

Industry Overview

Mining Bulk Packaging Needs

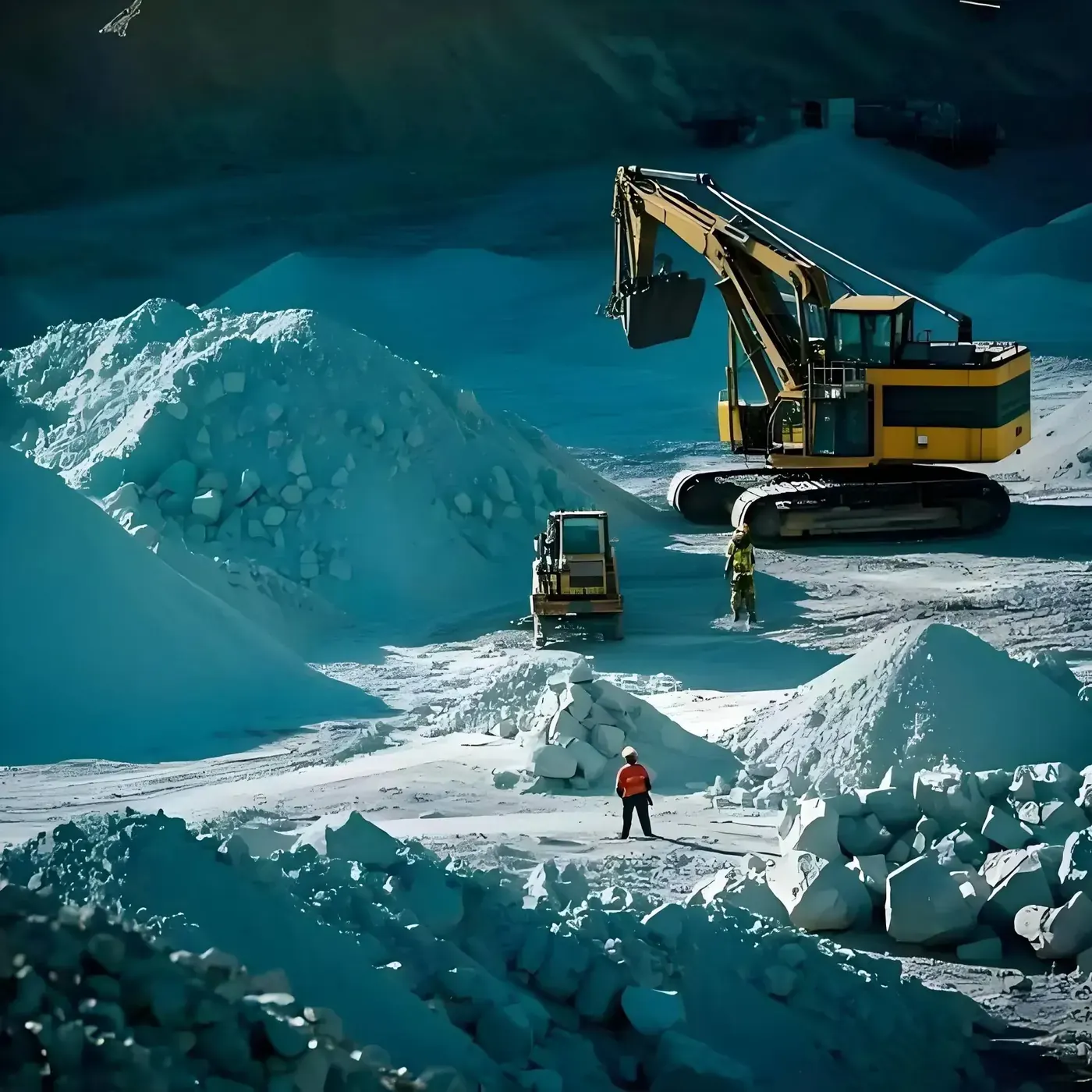

Mining operations transport heavy, abrasive concentrates and ores that push packaging to its limits. PandaFIBC builds U-Panel and 4-Panel bags with reinforced bodies, heavy-duty loops, and abrasion-resistant fabric for copper, zinc, nickel, iron ore, and coal products.

Get a Quote for Mining FIBC

Challenges & Solutions

How PandaFIBC Solves Mining Challenges

Extreme loads

Concentrates are dense; bags often need 1,500kg–4,000kg SWL.

Abrasion

Sharp mineral edges cut standard fabric; heavy-duty weave is essential.

Outdoor storage

Bags may sit in stockyards exposed to sun, rain, and dust.

Export logistics

Long sea voyages require robust bags that resist shifting and tearing.

FIBC Solutions for Mining

Product	Why It Works
U-Panel & 4-Panel	Optimal load distribution for dense minerals.
Heavy-Duty Fabric	200 – 240 gsm with reinforced corners and seams.
Coated Finish	Reduces dust emission and moisture ingress.
Custom Discharge	Bottom spout or full-open bottom for controlled discharge.

Specifications

Typical Mining FIBC Specifications

Attribute	Standard	Options
SWL	1,000kg – 2,500kg	Higher capacities on request
Safety Factor	5:1 / 6:1	8:1 / 10:1
Fabric	200 – 240 gsm coated PP	Custom weights, coatings and colors
Construction	U-Panel, 4-Panel, circular	U-Panel, 4-Panel, circular, baffle
Loops	Cross-corner, tunnel, or sleeve lift	Cross-corner, tunnel, sleeve, custom lift
